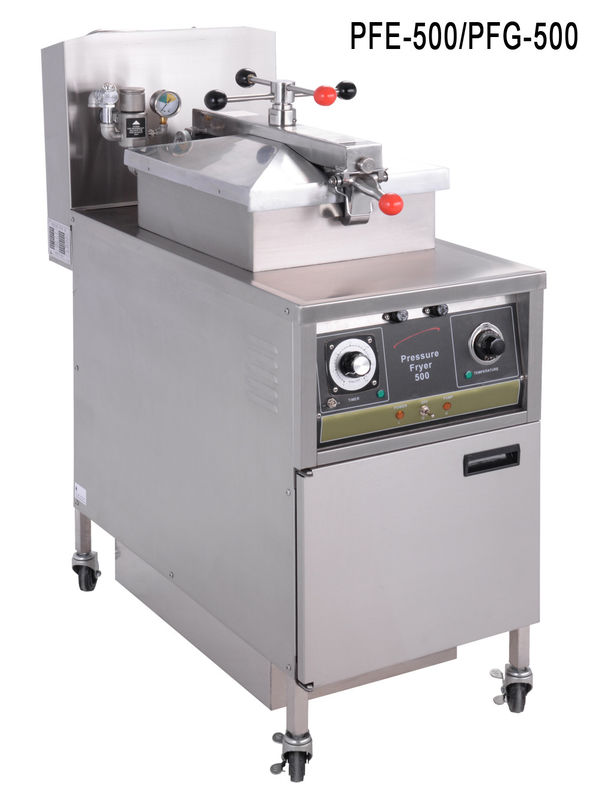

mechanical panel 304 SUS gas heating chicken pressure fryer with oil filtration
description
PFG-500 chicken pressure fryer is mechanical panel ,easy operation ,do not need program , Frying under pressure lowers the cooking temperature, extends the life of the oil, and speeds up cooking to meet peak demand,Under pressure, it also seals the natural juices of food and reduces oil inhalation into the product,heating by LPG gas or natural gas .high efficiency .auto accurate control time and temperature ,auto exhaust pressure when cooking done . The whole body of 304 stainless steel .Maximum frying temperature up to 200℃.Fryer installed inside a filtration system, can auto filter oil and clean oil come back to pot automatically by pump,extend the life of frying oil, improve food quality, reduce the cost of oil .It is commonly used in fried foods restaurants, hotel and other catering eatablishments.
Main Features
1.mechanical panel ,easy operation .
2.the standard of temperature can be ℃ or °F in panel.
3.Equipped with thermal insulation, save energy and improve efficiency .
4. Four casters carrying capacity together with brake function ,ease of movement and positioning .
5.All stainless steel body easy to wash and wipe ,long service life ,
6.Aluminum lid,rugged and lightweight ,easy to open and close
7.Built -in automatic oil filter system ,easy to use and energy efficient
8.High efficiency heating elements.
9.total 24 pcs nozzle,high efficiency heating .
10.wheels all universal ,can move any direction . two front wheels can brake ,can positioned when you need fix fryer location. When you need move it ,must release the brake. Wheels very durable ,can bear heavy weight.
11. water box to hold the vapour ,must install it ,prevent vapour flow to ground
12.The heavy-duty stainless steel pot has a 7-year warranty.
13.The square design of the fryer speeds up the flow of oil, even when cooking food
Parameter :
| Model |
PFG-500 |
| Voltage |
single phase 220V or single phase 110V |
| Power |
0.7kw (only panel and pump need electric) |
| heating efficiency |
50000 BTU/H |
| nozzle Qty |
24 pcs |
| Material |
1.5mm 304SUS |
| Work Pressure |
85KPA (12.5PSI) |
| Productivity |
4~6 whole chicken each batch ,10~12 minutes each batch |
| Total capacity |
25L |
| Inside pot thickness |
9mm
|
| Panel |
mechanical panel |
| oil filter system |
with auto filter system ,clean oil come back to pot automatically |
| filter principle |
Physical filter with filter paper |
| shortcut key |
total 10 keys can save ten different time & temper for fry 10 different food |
| warranty |
1 year guaranty, longlife service and technical supprot
|
| Spare parts |
send parts freely within one year ,after 1 year can DHL parts immediately |
| G/W |
150KG |
| machine size |
46*96*123cm |
| pack size |
103*51*130cm |
| packing |
strong plywood case |
